Wide Shackle
€2,50
Stainless Steel AISI 316, Forged,

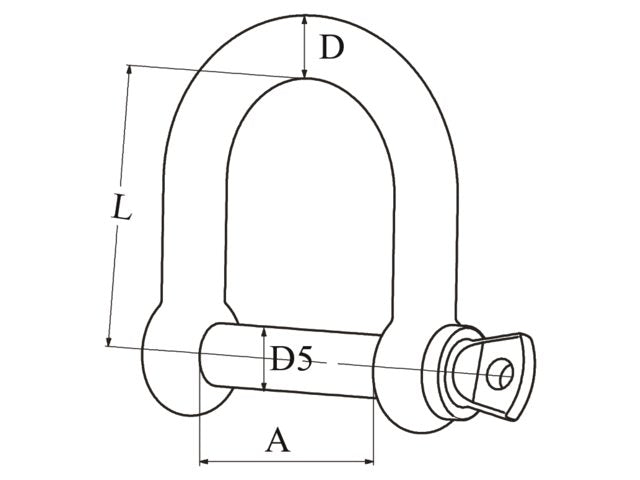

M5: D = 5mm, A = 25mm, L =24.5mm, D5 = 5mm, BL = 910 daN
M6: D = 6mm, A = 24mm, L =36mm, D5 = 6mm, BL = 1320 daN
M8: D = 8mm, A = 28mm, L =36mm, D5 = 8mm, BL = 2370 daN
M10:
