D Shackle

Stainless Steel AISI 316, Forged,

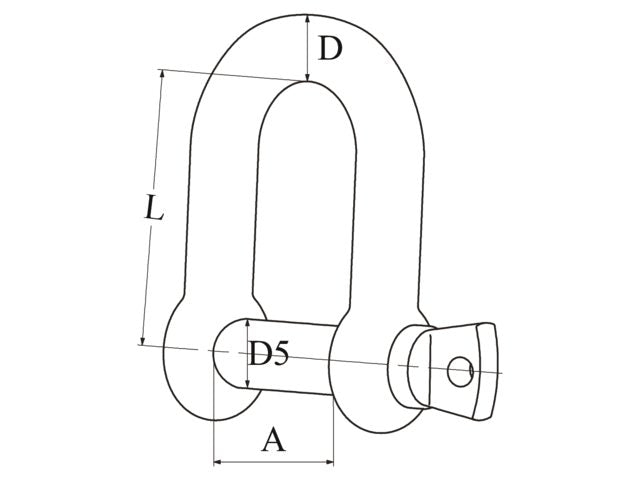

Available in:

M4: D =4mm, A= 8mm, L = 16mm, D5= 4mm, BL =577 daN

M5: D =5mm, A= 10mm, L = 20mm, D5= 5mm, BL =910 daN

M6: D =6mm, A= 12mm, L = 24mm, D5= 6mm, BL =1320 daN

M8: D =8mm, A= 16mm, L =32mm, D5= 8mm, BL =2370 daN

M10: D =10mm, A= 20mm, L = 40mm, D5= 10mm, BL =3730 daN

M12: D =12mm, A= 24mm, L =48mm, D5= 12mm, BL =5490 daN
