Bow Shackle
€2,50

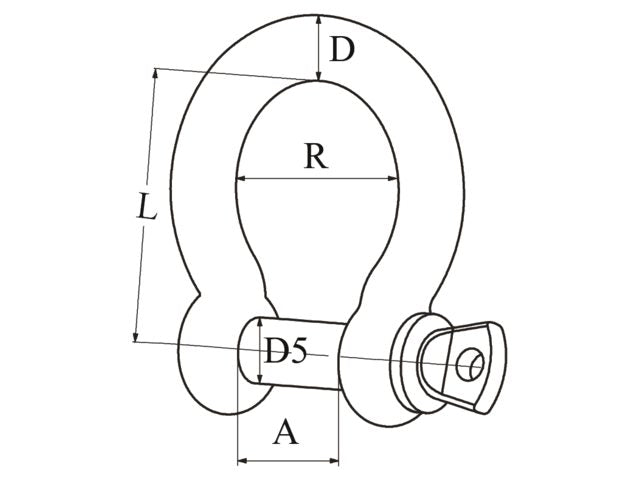

Stainless Steel AISI 316, forged, eye bolt.
M5: D =5mm, A =10mm, L =22.5mm, R = 17mm, D5 =5mm, BL =910 daN
M6: D =6mm, A =12mm, L =27mm, R = 21mm, D5 =6mm, BL =1320 daN
M8: D =8mm, A =16mm, L =36mm, R = 28mm, D5 =8mm, BL =2370 daN
M10: D =10mm, A =20mm, L =45mm, R = 35mm, D5 =10mm, BL =3730 daN
M12: D =12mm, A =24mm, L =54mm, R = 22mm, D5 =12mm, BL =5490 daN
